Fairdale Elevator 29" Hardtail (2025)

Introducing the Fairdale Elevator.

Fairdale is happy to introduce the Elevator; their 29" hardtail mountain bike that comes fully equipped with a SRAM GX Eagle groupset, a RockShox Pike fork, Alex wheels, Maxxis tires and more.

The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator's unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.

As always, making the ride fun is our main priority. This is a bike that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale's user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator's removable, external cable routing is a breeze for assembly and maintenance.

Bike Features

SRAM GX Eagle groupset

RockShox Pike fork

Maxxis Minion tires

Alex wheelset

Frame Features

100% 4130 chromoly 29" rigid frame

Butted top tube, down tube, and seat tube

Highly maneuverable BMX-inspired geometry

Investment cast yoke allows for extra short chain stays and 2.5" tire clearance

External brake, derailleur, and dropper post routing with removable hardware

Extensive hardware for bottles, accessories and ISCG mounting

Sizing

Medium Reach: 5'7" - 5'11" height

Large Reach: 5'10" - 6'2" height

Frame: Fairdale Elevator Frame with SRAM UDH
Fork: RockShox - Pike, 130mm Travel, 44mm Offset, 15mm x 110mm Boost Spacing
Handlebar: 30mm Rise, 9° Back, 5° Up, 35mm clamp, 7000 series AL
Stem: 50mm, 35mm Bore
Headset: FSA Orbit ITA

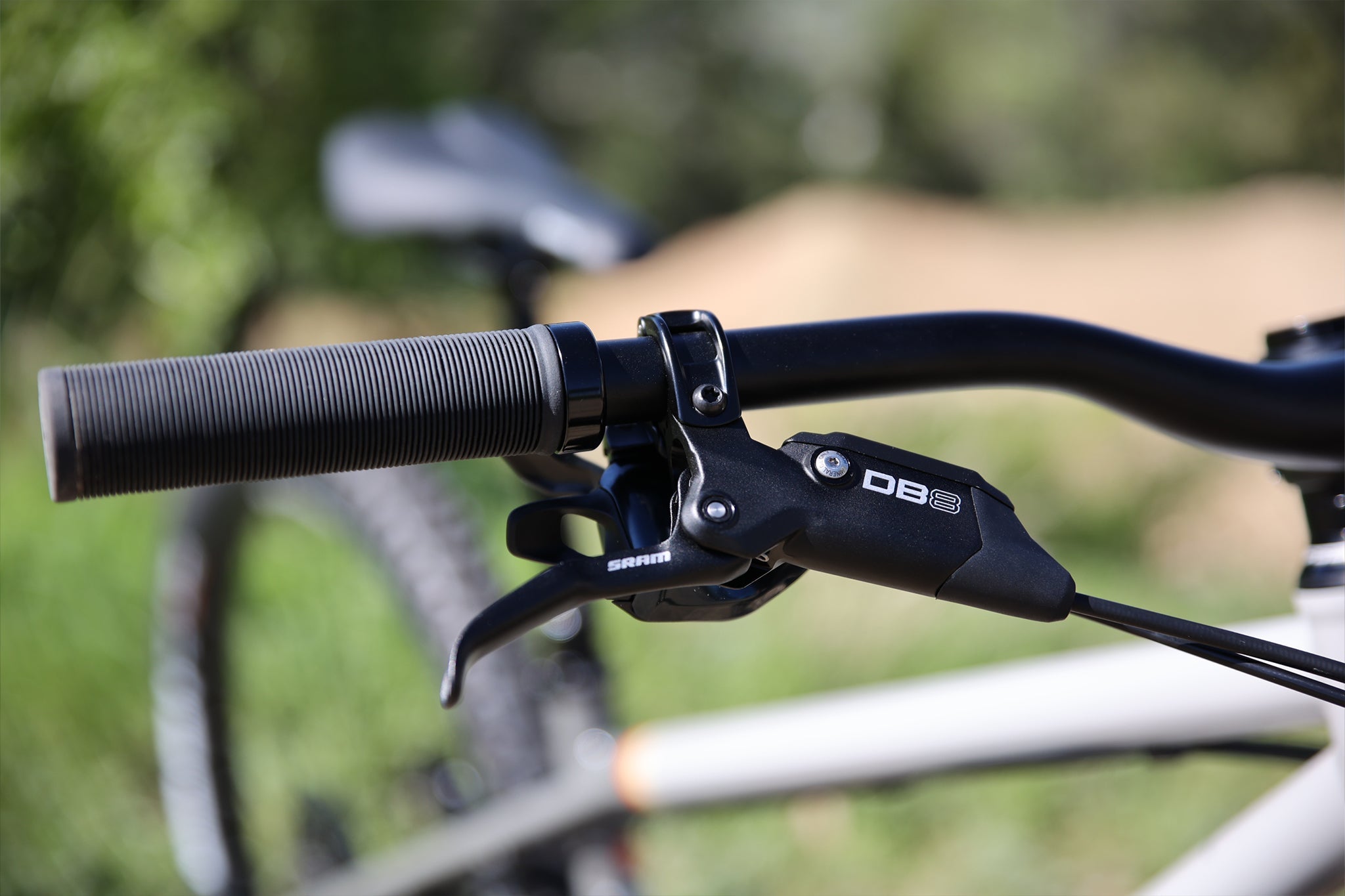

Brake Lever: SRAM DB8 Hydraulic
Brakes: SRAM DB8 Hydraulic
Grips: Lock-on
Saddle: Fairdale
Seat Post: TranzX Kitsuma Dropper Post (150mm M, 170mm L)
Seat Clamp: 35mm Fairdale Clamp
Cranks: SRAM GX, 170mm, DUB, Boost
Chainwheel: 32T X-SYNC2
BB Parts: DUB, BSA
Pedals: Not Included
Rims: Alex EXR 30
Front Hub: Bear Pawls, 32H, Sealed, 6-Bolt, 15x110mm BOOST
Rear Hub: Bear Pawls, 32H, Sealed, 6-Bolt. 12x148mm BOOST, SRAM XD Driver
Front Tire: Maxxis Minion DHF, 29 x 2.50WT, Dual Compound, EXO
Rear Tire: Maxxis Minion DHR II, 29 x 2.40WT, Dual Compound, EXO/TR
Chain: GX Eagle, 12-speed
Cassette: GX Eagle, 10-52T, 12-Speed, Black
R. ShiftLever: SRAM GX EAGLE Trigger, X-actuation, 12-speed
R. Derailleur: SRAM GX EAGLE, Long Cage
