STATUS 2 ZERO finds the boundaries of mountain bikes made for smaller riders and pushes past them. Is it a trail bike Yes. Park bike Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride Oh yeah. STATUS 2 ZERO is a bike meant to be ridden, however, or wherever you ride.Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 ZERO will allow you to ride your way. GO BIG, START SMALL: STATUS 2 ZERO is a first for Specialized's mountain bikes. It is a 'core' and incredibly capable rig built intentionally for small riders who want to really get after it. It has custom-tuned kinematics and suspension from the Specialized Ride Dynamics team-specifically for smaller riders-and appropriately sized components. BUILT BY RIDERS: STATUS 2 ZERO starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It's not for the gram counter-it's for those riders who push the boundaries of progression and come back for more. RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each bike gets a special shock tune from our Specialized Ride Dynamics team-a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to perfectly complement the new bike's kinematics and smaller size. LET'S GET PERSONAL: Customize even more with neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame's geometry to your desired ride or terrain. Bikes ship in the high position but can be 'flipped' to lower and slacker-8 mm lower bottom bracket and half a degree slacker head tube angle. 100% Redesigned durable alloy chassisNew, more durable alloy rimsHorst Link geometry adjust flip chipUpdated geometry for more usabilityCurated parts spec for your desired ride experience
Crank Length | 155 |
---|
Handlebar Width | 760 |
---|
Stem Length | 40 |
---|
Saddle Width | 130 |
---|
Seatpost Length | 100 |
---|
Stack (low) | 597 |
---|
Stack (high) | 593 |
---|
Reach (low) | 390 |
---|
Reach (high) | 396 |
---|
Headtube Length | 95 |
---|
Headtube Angle (low) | 63.5 |
---|
Headtube Angle (high) | 64 |
---|
BB Height (low) | 332 |
---|
BB Height (high) | 340 |
---|
BB Drop (low) | 24 |
---|
BB Drop (high) | 16 |
---|
Trail (low) | 136 |
---|
Trail (high) | 133 |
---|
Fork Length (full) | 563 |
---|
Fork Rake/Offset | 37 |
---|
Front Center | 718 |
---|
Chainstay Length (low) | 432 |
---|
Chainstay Length (high) | 428 |
---|
Wheelbase | 1148 |
---|
Top-tube Length (horizontal) | 509 |
---|
Bike Standover Height | 722 |
---|
Seat Tube Length | 370 |
---|
Seat Tube Angle (low) | 77 |
---|
Seat Tube Angle (high) | 77.6 |
---|
Frameset- Frame: M5 Alloy chassis and rear-end, Trail Geometry for 27.5" front and 26" rear wheels, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
- Seat Binder: Alloy, 38.6mm

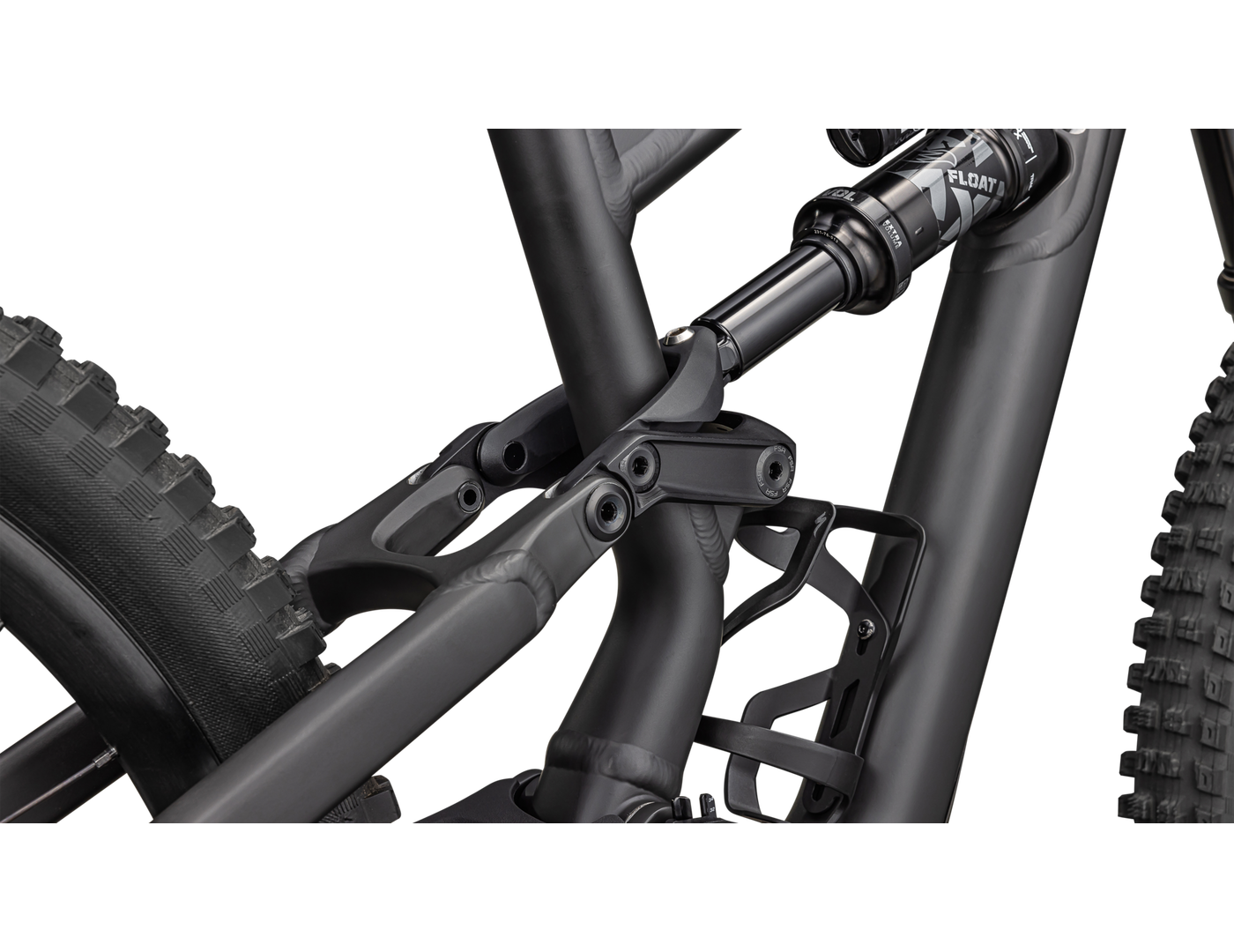

Suspension- Rear Shock: FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever with LSR adjustment, 230x60mm
- Fork: FOX FLOAT 36 Rhythm, GRIP damper, two-position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel
Brakes- Front Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
- Rear Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
Drivetrain- Bottom Bracket: SRAM DUB Threaded Wide
- Rear Derailleur: SRAM NX Eagle, 12-speed
- Shifters: SRAM NX Eagle, trigger, 12-speed
- Crankset: SRAM X1 Eagle, DUB, 155mm, 55mm chainline, 30T
- Chainrings: Steel, 30T
- Cassette: SRAM NX Eagle, 12-speed, 11-50T
- Chain: SRAM NX Eagle, 12-speed
Wheels & Tires- Rims: Roval Traverse, hookless alloy, 30mm inner width, tubeless ready
- Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
- Spokes: DT Swiss Industry
- Front Tire: Butcher, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5x2.3"
- Rear Tire: Butcher, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 26x2.3"
- Inner Tubes: Standard, Presta valve
Cockpit- Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width
- Stem: Alloy Trail Stem, 35mm bar bore
- Grips: Deity Lockjaw
- Saddle: Bridge Saddle, steel rails, 130mm
- Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
Product Details- Product ID: 221253
- Weight: 15.56 kg (34 lb, 4.9 oz)
- Weight Size: S0
|
