The mountain bike experience starts here. With a redesigned frame that's now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs, and a 1x drivetrain, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.Key Performance Factors
Modern MTB DesignTapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road ControlNew geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and DurableAll-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
| | S (29") | M (29") | L (29") | XL (29") | XXL (29") | XS (27.5") | S (27.5") | A | Seat Tube Length (MM) | 380 | 420 | 450 | 480 | 500 | 345 | 375 | B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° | 74.0° | 74.0° | C | Top Tube Length (MM) | 581 | 604 | 629 | 653 | 676 | 542 | 562 | D | Head Tube Length (MM) | 95 | 105 | 125 | 140 | 155 | 90 | 90 | E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° | 67.0° | 67.0° | F | Fork Rake (MM) | 44 | 44 | 44 | 44 | 44 | 44 | 44 | G | Trail (MM) | 108.9 | 108.9 | 108.9 | 108.9 | 108.9 | 105.2 | 105.2 | H | Wheelbase (MM) | 1139 | 1164 | 1191 | 1217 | 1242 | 1084 | 1104 | I | Chain Stay Length (MM) | 455 | 455 | 455 | 455 | 455 | 440 | 440 | J | Bottom Bracket Drop (MM) | 55 | 55 | 55 | 55 | 55 | 45 | 45 | K | Stack (MM) | 597 | 606 | 625 | 639 | 653 | 548 | 548 | L | Reach (MM) | 415 | 436 | 456 | 476 | 495 | 385 | 405 | M | Stand Over Height (MM) | 715 | 709 | 709 | 710 | 707 | 684 | 684 | N | Handlebar Width (MM) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | O | Stem Length (MM) | 50 | 60 | 70 | 80 | 90 | 40 | 50 | P | Crank Length (MM) | 170 | 170 | 170 | 175 | 175 | 165 | 165 | Q | Wheel Size | 29 | 29 | 29 | 29 | 29 | 27 | 27 | Q | Wheel Size | 29 | 29 | 29 | 29 | 29 | 27 | 27 |
Sizes & Colors- Sizes:
- Colors: Metallic Blue, Charcoal
Frame & Suspension- Frame: ALUXX-grade aluminum, disc

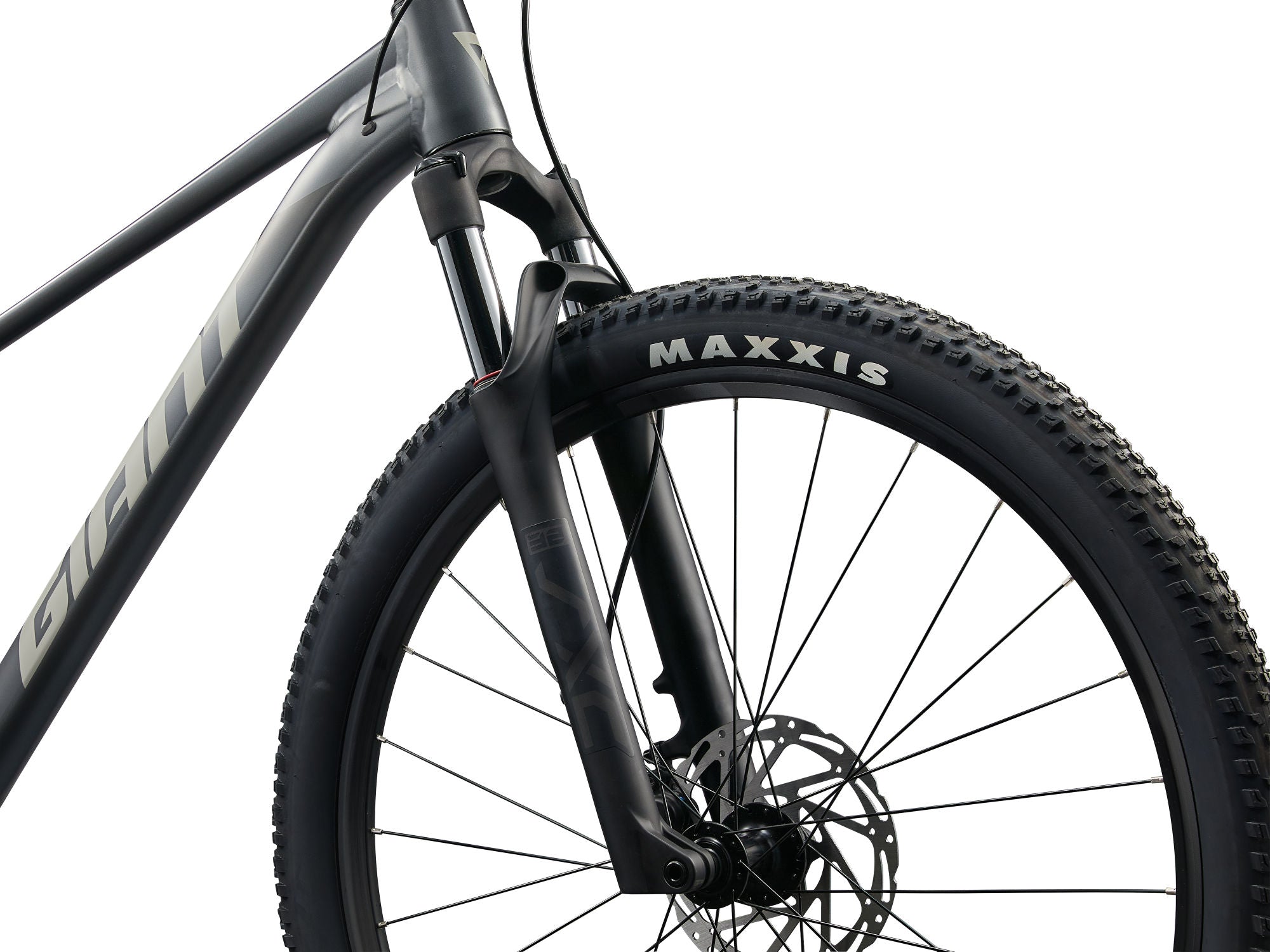

- Fork: SXC32-3 RL, coil spring, QR, alloy steerer, 15x110
- Shock: N/A
Cockpit- Handlebar: Giant Connect Trail, 31.8mm
- Stem: Giant Sport, 7-degree
- Seatpost: Giant Contact Switch Core, 30.9
- Saddle: Giant ErgoContact Trail
Drivetrain- Pedals: MTB caged
- Shifters: Shimano CUES SL-6000, 1x10
- Front Derailleur: N/A
- Rear Derailleur: Shimano CUES RD-U6000
- Crankset: ProWheel Charm, 32T (27.5") or 30T (29")
- Bottom Bracket: Cartridge
- Cassette: Shimano CUES, CS-LG300, 11x48
- Chain: KMC X-11
Brakes- Brakes: Tektro HDC M275, hydraulic
- Rotors:
- Brake Levers: Tektro HDC M275
Wheels & Tires- Rims: Giant GX03V (29" or 27.5"), alloy, double wall, 21mm inner width
- Hubs: Alloy, sealed bearing
- Spokes: Stainless, 14g
- Tires:
- Extras: 2.4" max tire size
|
