Designed to tackle challenging singletracks, ascend steep inclines, and hit aggressive descents, the Liv Intrigue Advanced Pro 29 women's mountain bike cherishes adventurous rides.Top Performance Trail

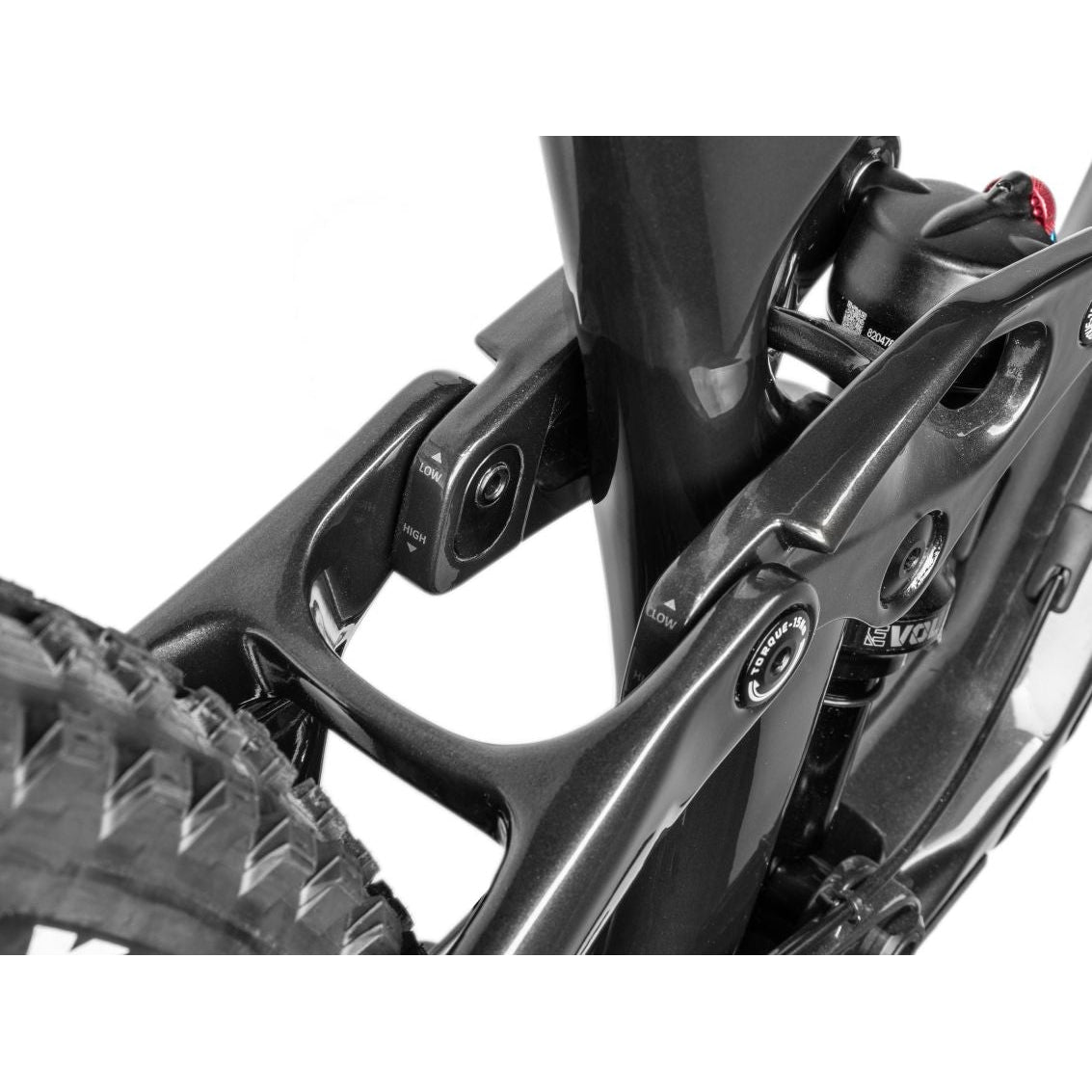

Advanced-Grade Composite frame, Maestro Suspension and flip chip adjustable frame geometry equip you with a lightweight, versatile trail bike. Balanced AgilityObstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks. Custom Tuned SuspensionThe 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike's intended use, resulting in improved traction and control.
| | S | M | L |
|---|
| | LOW|HIGH | LOW|HIGH | LOW|HIGH | | A | SEAT TUBE LENGTH(inch) | 16.7 | 17.1 | 18.1 | | B | SEAT TUBE ANGLE | 77.0°|77.8° | 77.0°|77.8° | 77.0°|77.8° | | C | TOP TUBE LENGTH(inch) | 22|21.9 | 22.6|22.6 | 23.6|23.5 | | D | HEAD TUBE LENGTH(inch) | 4.1 | 4.3 | 4.9 | | E | HEAD TUBE ANGLE | 65.8°|66.5° | 65.8°|66.5° | 65.8°|66.5° | | F | FORK RAKE(inch) | 1.7 | 1.7 | 1.7 | | G | TRAIL(inch) | 4.8|4.6 | 4.8|4.6 | 4.8|4.6 | | H | WHEELBASE(inch) | 45.7|45.7 | 46.3|46.3 | 47.4|47.4 | | I | CHAIN STAY LENGTH(inch) | 17.2|17.1 | 17.2|17.1 | 17.2|17.1 | | J | BOTTOM BRACKET DROP(inch) | 1.6|1.2 | 1.6|1.2 | 1.6|1.2 | | K | STACK(inch) | 24.4|24.2 | 24.6|24.3 | 25.2|24.9 | | L | REACH(inch) | 16.3|16.7 | 16.9|17.2 | 17.8|18.1 | | M | STAND OVER HEIGHT(inch) | 28.8|29.1 | 29|29.4 | 29.8|30.1 | | N | HANDLEBAR WIDTH(inch) | 29.9 | 29.9 | 30.7 | | O | STEM LENGTH(inch) | 2 | 2 | 2 | | P | CRANK LENGTH(inch) | 6.7 | 6.7 | 6.9 | | Q | WHEEL SIZE | 29" | 29" | 29" |
Frame & Suspension- Frame: Advanced-Grade Composite front and rear triangles, 125mm Maestro Suspension, flip chip
- Fork: Marzocchi Bomber Z2, 140mm travel, Rail damper, Boost 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
- Shock: Fox Float DPS Performance 185/50, custom tuned for Liv
Drivetrain- Front Derailleur: N/A
- Rear Derailleur: SRAM SX Eagle
- Shifters: SRAM SX Eagle, 1x12
- Crankset: SRAM SX, 30T
- Cassette: SRAM SX, 11x50
- Chain: SRAM SX Eagle
- Bottom Bracket: SRAM DUB, press fit
Brakes- Brakes: Shimano BR-MT420, hydraulic
- Brake Levers: Shimano Deore BL-MT401
Cockpit- Handlebar: Giant Contact TR35, alloy, 35mm
- Grips: Liv Supera, single lock ring
- Stem: Giant Contact SL, 35mm
Seat & Dropper Post- Saddle: Liv Sylvia
- Seatpost: Giant Contact Switch dropper, remote
Wheels & Tires- Rims: Giant TR 1 29 WheelSystem
- Hubs: Giant TR 1 29 WheelSystem
- Spokes: Giant TR 1 29 WheelSystem
- Tires:
PedalsColors & Sizes- Colors Available: Twilight Mauve / Carbon / Dark Iridescent
- Sizes: S, M, L
Extras- Tubeless prepared
- Maximum Tire Size: 2.5"
- Maximum Chainring Size: 32T
|
