The Liv Intrigue LT Advanced 1 Mountain Bike - Your Ticket to Trail Domination! Whether you're gearing up for park days, conquering backcountry singletrack, or eyeing your next enduro race, this bike has got your back with a blend of tech wizardry and shred-tastic FUN.This beast features a lightweight Advanced-grade composite frame that's designed for maximum trail prowess. It's got a slacker head tube angle for technical terrain confidence and a longer reach to keep you carving those corners like a pro. The 150mm of Maestro rear wheel suspension has been fine-tuned by fierce female riders for a ride that'll leave you grinning. Paired with 160mm of front suspension, it's the perfect combo of agility and burliness.
But here's where the realFUN kicks in - adjustable frame geometry! The all-new flip chip, Maestro 3, gives you the power to customize your head tube and seat tube angles, bottom bracket height, and rear wheel size*. It's like having a bike that can morph to match your mood and the trail conditions. (*Available in sizes M and L)
Wheels. It's the recipe for a playful rear end and a stable, fast-rolling front.For frame sizes XS and S, you get a nimble MX configuration with a 29-inch wheel up front and a 27.5-inch wheel in the rear. It's the recipe for a playful rear end and a stable, fast-rolling front. For sizes M and L, you've got 29-inch wheels both front and rear, but guess what You can switch to a 27.5-inch rear wheel to unleash a new beast, giving you the freedom to tailor your ride to your style and the terrain you conquer.
So, get ready to shred, dial in your settings, and hit the trails with Liv's Intrigue LT Advanced 1 - the bike that's all about making your ride uniquely awesome. (*27.5-inch wheel sold separately for frame sizes M and L, in case you want to double up on the FUN!) SpecificationsSizes | XS, S: MX only, M, L: 29" F&R out of the box, MX compatible | Colors | Raw Carbon | Frame | Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip - Maestro 3, integrated down tube storage | Fork | Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset | Shock | Fox Float X Performance Elite 185x55, custom tuned for Liv | Handlebar | Giant Contact SLR TR35, composite, 20mm rise, 35mm XS: 760mm, S: 760mm, M: 760mm, L: 780mm | Grips | Liv Tactal Pro Single Lock-On XS/S: 120mm, M/L: 130mm | Stem | Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm | Seatpost | TranzX travel-adjustable dropper, remote XS: 125mm travel/ 30.9 x 390mm S: 120-150mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm | Saddle | Liv Sylvia | Pedals | platform | Shifters | SRAM AXS, 1x12 | Front Derailleur | N/A | Rear Derailleur | SRAM GX T-Type | Brakes | Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm | Brake Levers | Shimano XT BL-M8100 | Cassette | SRAM GX T-Type, 10x52 | Chain | SRAM GX T-Type | Crankset | SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm | Bottom Bracket | SRAM DUB, press fit | Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 | Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt | Spokes | Sapim | Tires | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless | Extras | MRP 1259-HD2CS-0001 chain guide, 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 32t | Weight | The most accurate way to determine any bike's weight is to have your localBicycle Warehouseweigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| X-Small | Small | Medium | Large |
---|
| LOW|MID|HIGH | LOW|MID|HIGH | LOW|MID|HIGH | LOW|MID|HIGH | SEAT TUBE LENGTH(inch) | 14.6 | 15.4 | 16.5 | 17.7 | SEATPOSTINSERTIONDEPTH(inch) | 9.1 | 9.8 | 11 | 12.2 | SEAT TUBE ANGLE | 76.2°|76.6°|77.0° | 76.2°|76.6°|77.0° | 77.3°|77.6°|78.0° | 77.3°|77.6°|78.0° | TOP TUBE LENGTH(inch) | 21.7|21.7|21.7 | 22.3|22.3|22.2 | 22.9|22.8|22.8 | 23.7|23.7|23.7 | HEAD TUBE LENGTH(inch) | 3.7 | 3.7 | 3.9 | 4.3 | HEAD TUBE ANGLE | 64.7°|65.1°|65.5° | 64.6°|65.1°|65.5° | 64.8°|65.1°|65.5° | 64.8°|65.1°|65.5° | FORK RAKE(inch) | 1.7 | 1.7 | 1.7 | 1.7 | TRAIL(inch) | 5.2|5|4.9 | 5.2|5|4.9 | 5.1|5|4.9 | 5.1|5|4.9 | WHEELBASE(inch) | 45.9|45.9|45.8 | 46.6|46.5|46.4 | 47.6|47.5|47.5 | 48.5|48.5|48.5 | CHAIN STAY LENGTH(inch) | 17.4|17.4|17.3 | 17.4|17.4|17.3 | 17.4|17.4|17.3 | 17.4|17.4|17.3 | BOTTOM BRACKET DROP(inch) | 1|0.8|0.6 | 0.9|0.8|0.6 | 1.4|1.2|1 | 1.4|1.2|1 | STACK(inch) | 24.8|24.7|24.6 | 24.7|24.7|24.6 | 24.7|24.6|24.5 | 25.1|25|24.8 | REACH(inch) | 15.7|15.8|16 | 16.3|16.4|16.6 | 17.3|17.4|17.6 | 18.1|18.2|18.4 | STAND OVER HEIGHT(inch) | 24.1|24.1|24.1 | 26.5|26.5|26.5 | 28|28|28 | 29.5|29.5|29.5 | HANDLEBAR WIDTH(inch) | 29.9 | 29.9 | 29.9 | 30.7 | STEM LENGTH(inch) | 1.6 | 2 | 2 | 2 | CRANK LENGTH(inch) | 6.5 | 6.7 | 6.7 | 6.7 | WHEEL SIZE | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 29" | [F] 29" [R] 29" |
- Sizes: XS, S: MX only, M, L: 29" F&R out of the box, MX compatible
- Colors: Raw Carbon

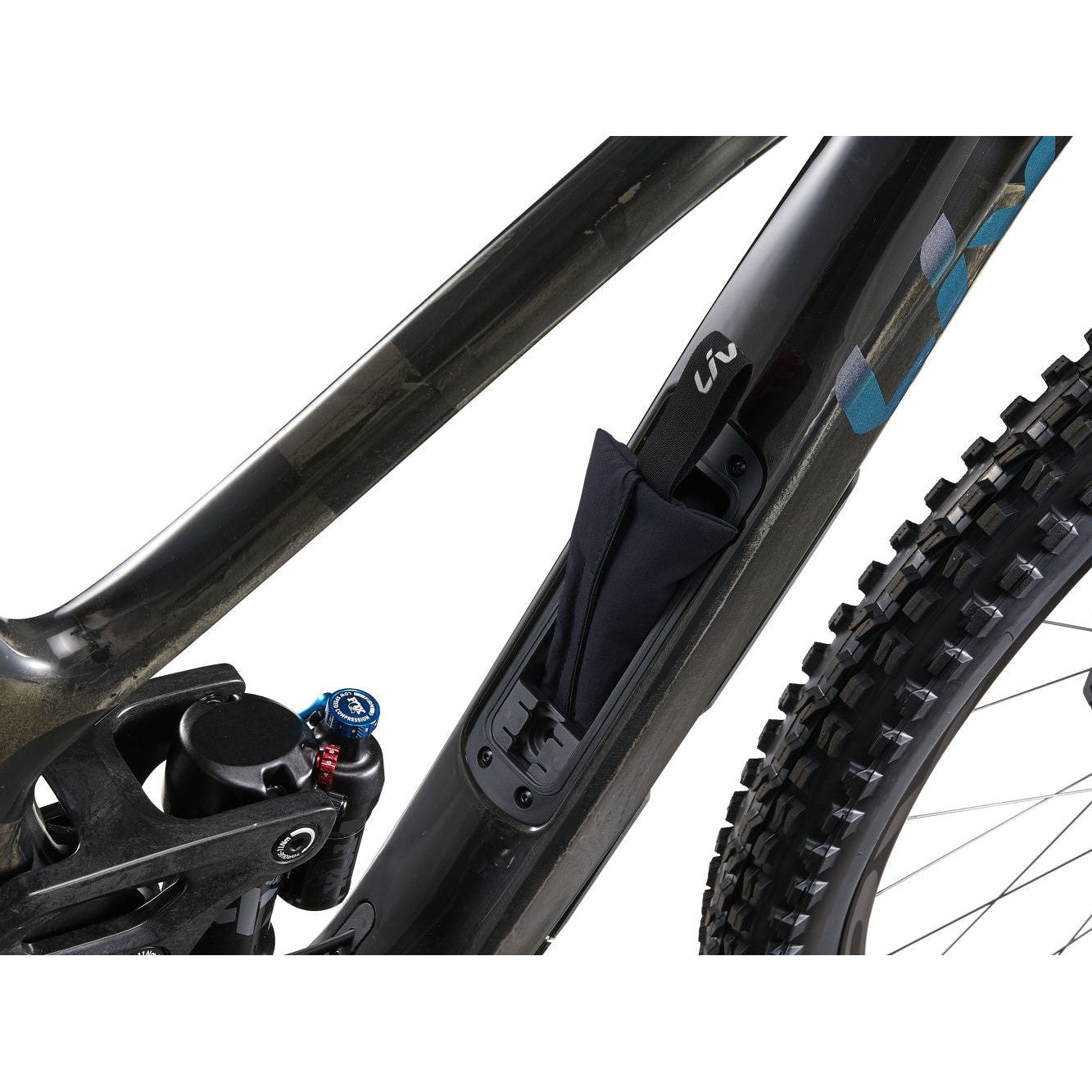

- Frame: Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip - Maestro 3, integrated down tube storage
- Fork: Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset
- Shock: Fox Float X Performance Elite 185x55, custom tuned for Liv
- Handlebar: Giant Contact SLR TR35, composite, 20mm rise, 35mm XS: 760mm, S: 760mm, M: 760mm, L: 780mm
- Grips: Liv Tactal Pro Single Lock-On XS/S: 120mm, M/L: 130mm
- Stem: Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
- Seatpost: TranzX travel-adjustable dropper, remote XS: 125mm travel/ 30.9 x 390mm S: 120-150mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm
- Saddle: Liv Sylvia
- Pedals: platform
- Shifters: SRAM AXS, 1x12
- Front Derailleur: N/A
- Rear Derailleur: SRAM GX T-Type
- Brakes: Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
- Brake Levers: Shimano XT BL-M8100
- Cassette: SRAM GX T-Type, 10x52
- Chain: SRAM GX T-Type
- Crankset: SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
- Bottom Bracket: SRAM DUB, press fit
- Rims: Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
- Hubs: [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
- Spokes: Sapim
- Tires: Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
- Extras: MRP 1259-HD2CS-0001 chain guide, 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 32t
- Weight: The most accurate way to determine any bike's weight is to have your localBicycle Warehouseweigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
