Giant Trance X SX (2024)

From loam to chunder, alpine peaks to desert rock, this trail slayer has a 29-inch front wheel and 27.5-inch rear for the ultimate combo of quickness and control. With 145mm of rear suspension, a beefy 160mm fork, and adjustable geometry, it's ready to let loose on black diamond descents.

Key Performance Factors

Updated suspension

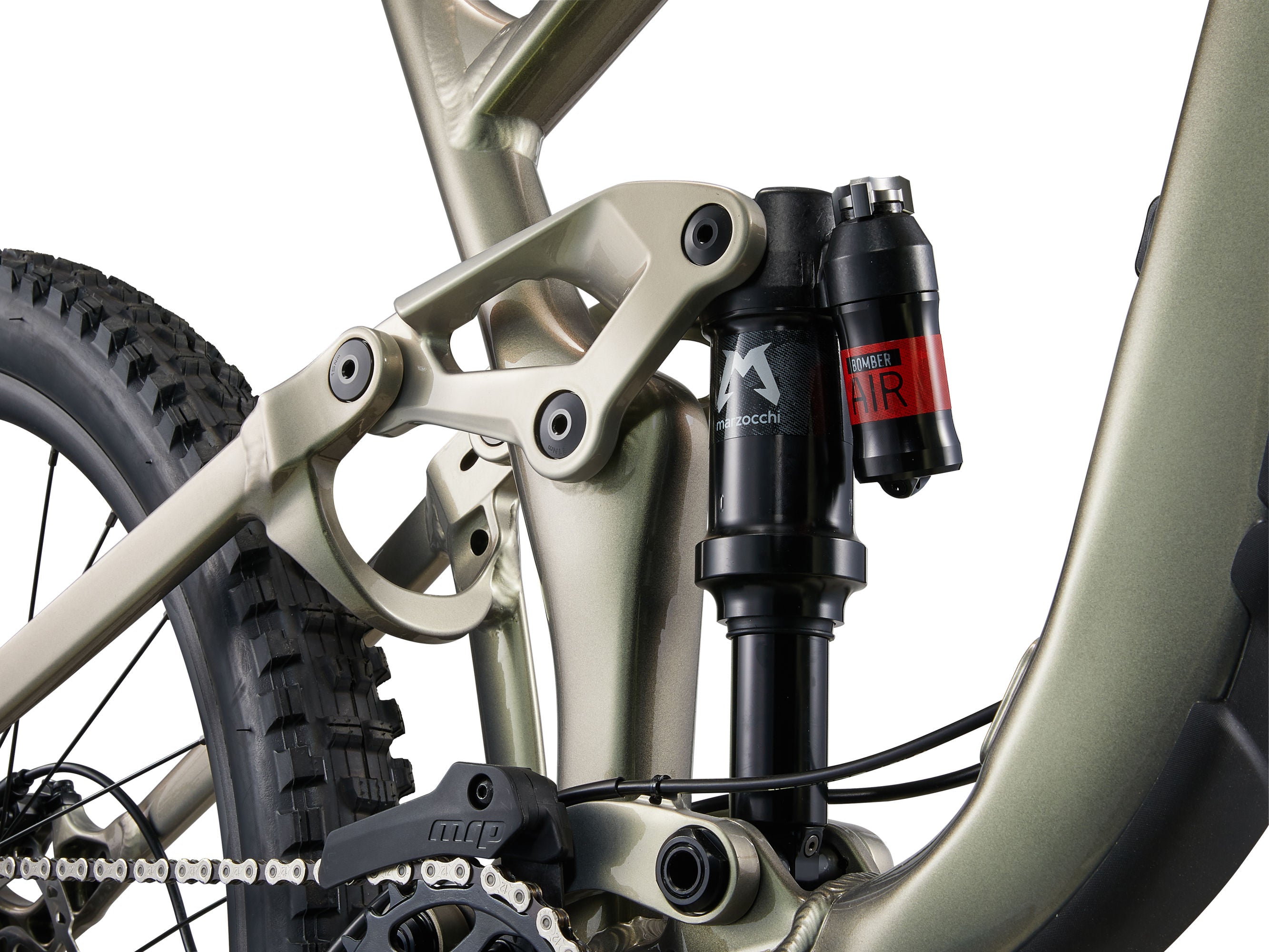

This "SX" series features all-new Maestro rear suspension with added travel (145mm) for technical singletrack and rugged descents. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a longer travel 160mm fork, giving riders superior confidence and control on the descents.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry to suit their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so you can easily achieve your preferred positioning.

Mixed wheel setup

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

Frame & Suspension

• Frame: ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
• Fork: Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset
• Shock: Marzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant

Cockpit

• Handlebar: Giant Contact TR35, alloy, 780x35mm, 20mm rise
• Grips: Giant Tactal Pro Single Lock-On, 132x35mm
• Stem: Giant Contact SL 35
• Seatpost: Contact Switch AT dropper, remote
• Saddle: Giant Romero SL

Drivetrain

• Shifters: Shimano Deore, 1x12
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore, Shadow +
• Cassette: Shimano Deore M6100, 10x51
• Chain: KMC X-12
• Crankset: Praxis Cadet HD M24, 30t, 55mm chainline
• Bottom Bracket: Praxis, press fit

Brakes

• Brakes: Shimano BR-MT420, hydraulic, four piston
• Rotors: Shimano RT-66
• Brake Levers: Shimano Deore BL-MT401

Wheels & Tires

• Rims: Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
• Hubs:
• Spokes: Sapim, 28, J-bend
• Tires:

Extras

• Tubeless prepared
• 2.5" max tire size
• 34t max chainring size
• 3M tailgate protector
• Down tube and chainstay protection

Weight

The most accurate way to determine any bike's weight is to have your local Bicycle Warehouse weigh it. Weight can vary based on size, finish, hardware, and accessories. All our bikes are designed for best-in-class weight and ride quality.
