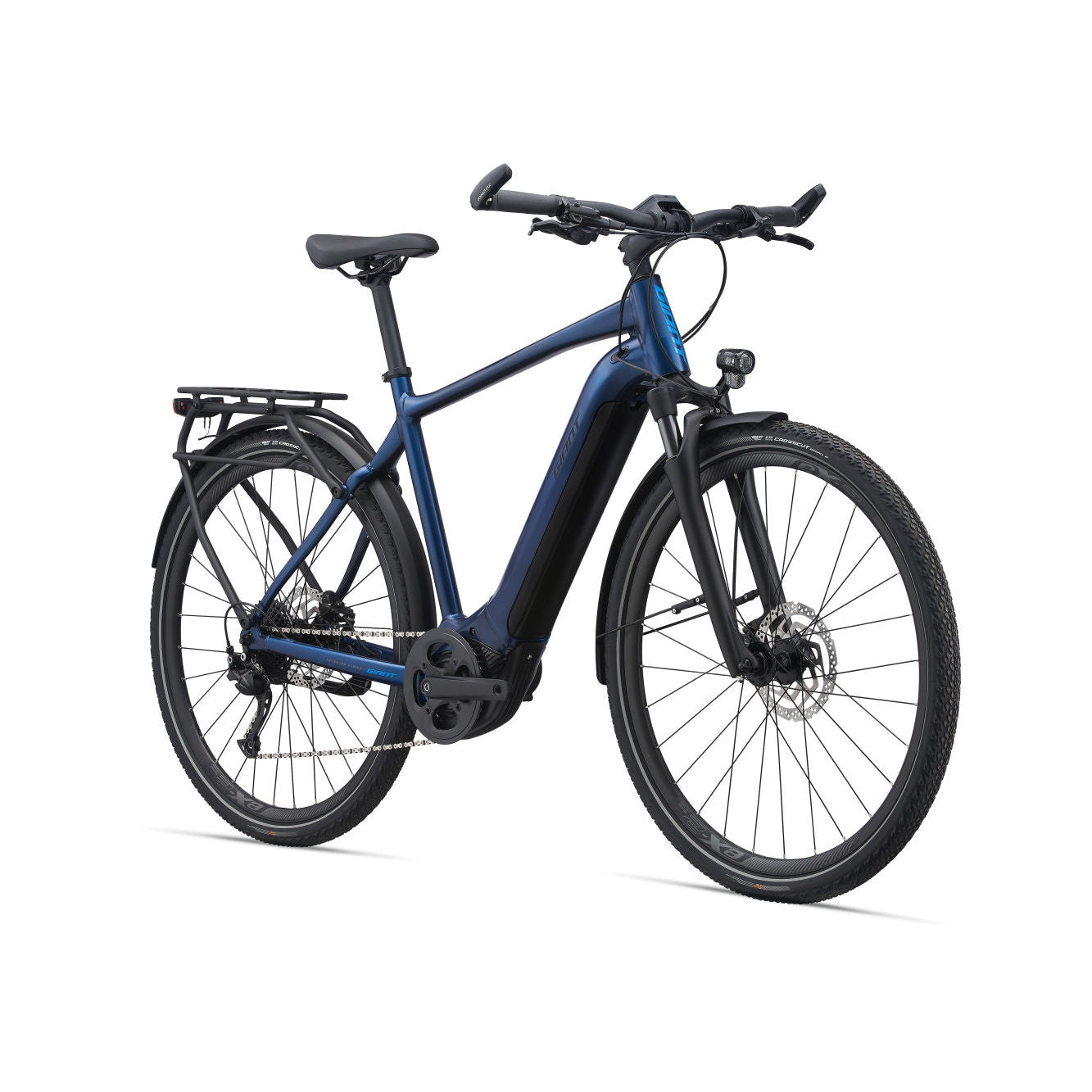

Pick your destination and find joy in the journey.This versatile all-rounder electric bike is ideal for trekking, commutingor simply boosting the fun factor on any ride. Overall stabilityThe ALUXX aluminum frameset and SyncDrive Life motor combine for smooth handling and acceleration on all types of roads from hills to flats. Explore new routesThe RideControl EVO with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged. Longer rangeExplore E+ gives riders the freedom to ride farther with its EnergyPak Smart battery that delivers 500Wh of power. SpecificationsMotor: SyncDrive Life, 60Nm, powered by YamahaController: RideControl ErgoDisplay: RideDash EvoBattery: EnergyPak Smart 500Wh EnergyPak Plus range extender compatibleSizes: S, M, L, XL, XXLColors: Metallic NavyFrame: ALUXX Aluminum, Overdrive 1 - 1" head tube, integrated KS18 kickstand mountFork: SR Suntour NEX E25 NLO DS 63mm travelShock: N/AHandlebar: Giant Connect Riser 31.8x690mmGrips: Giant Contact Ergo Max PlusStem: Giant ContactSeatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged AluminiumSaddle: Selle Royal Vivo Ergo ModeratePedals: Aluminum PlatformShifters: Shimano AltusFront Derailleur: N/ARear Derailleur: Shimano Alivio, 9-speedBrakes: Tektro HD-M275, hydraulic disc, 160/180mmBrake Levers: Tektro HD-M275Cassette: Shimano CS-HG200, 11-36T, 9-speedChain: KMC e.9 Sport, e-bike optimizedCrankset: Forged Alloy minimal Q-factor, 42TBottom Bracket: N/ARimsGiant eX2, Tubeless Ready, 700c AluminiumHubsGiant eTracker, [F] 100x9mm QR [R] 135mm QRSpokesStainless steelTiresGiant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, ReflexLightingAxa BlueLine 30Lux Steady E6 frontAxa BlueLine Steady E6 rearCarrierMIK rack. System bag & basket compatible
Geometry | S | M | L | XL |
|---|
| SEAT TUBE LENGTH (inch) | 17.1 | 19.1 | 21.1 | 23 | | SEAT TUBE ANGLE | 74.0° | 73.0° | 73.0° | 73.0° | | TOP TUBE LENGTH (inch) | 22.4 | 23.2 | 24 | 24.8 | | HEAD TUBE LENGTH (inch) | 5.1 | 5.5 | 6.1 | 6.7 | | HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° | | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 | | TRAIL (inch) | 3.6 | 3.6 | 3.6 | 3.6 | | WHEELBASE (inch) | 43.8 | 44.1 | 45 | 45.8 | | CHAIN STAY LENGTH (inch) | 17.9 | 17.9 | 17.9 | 17.9 | | BOTTOM BRACKET DROP (inch) | 2.4 | 2.4 | 2.4 | 2.4 | | STACK (inch) | 24 | 24.4 | 24.9 | 25.5 | | REACH (inch) | 15.6 | 15.7 | 16.4 | 17 | | STAND OVER HEIGHT (inch) | 29.3 | 30.5 | 31.8 | 33.2 | | HANDLEBAR WIDTH (inch) | 27.2 | 27.2 | 27.2 | 27.2 | | STEM LENGTH (inch) | 2.4 | 2.8 | 3.1 | 3.5 | | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.7 | 6.7 | | WHEEL SIZE | 700C | 700C | 700C | 700C |
|
