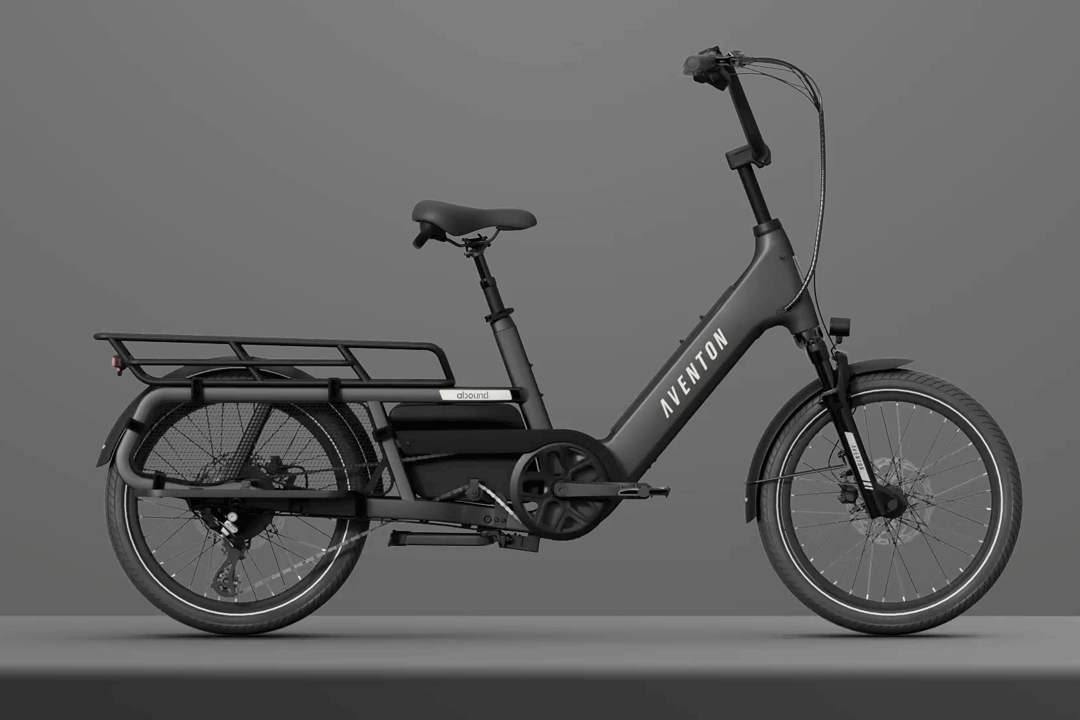

Aventon Bikes Abound LR Ebike

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

General

Weight: 88 lbs

Total Weight Limit: 440 lbs

Rider Height: 4'11" - 6'3"

Class: Class 2 Ebike

Water Resistance: IPX4

Range: Up to 60 miles

Battery Safety Certifications: Certified to UL 2271

Safety Certifications: UL and TUV Safety Certified (UL 2849)

Frameset

Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork: Threaded Steerer Tube for Quill Stem, 15x110 spacing, 51mm travel, adjustable lockout, black stanchions

Rear Spacing: 175mm

Fork Spacing: 110mm

Wheelset

Front Wheel: Double Wall Aluminum, 20in, 36-hole, 13g, 20x110 Thru Axle, Schrader Valve

Rear Wheel: Double Wall Aluminum, 20in, 36-hole, 12g, Nutted Hub Drive Motor, Schrader Valve

Tires: 20x3.0 Innova IA-2131 Urban Tire with Reflective Sidewalls

Ebike System

Motor: Shengyi 36V 750W Hub Drive with 6 speed sensors (1188W peak)

Motor Torque: 80Nm

Display: Aventon BC147

Battery: Removable Internal Lithium-ion (36V, 20Ah, 733Wh, LG 21700 cells)

Battery Weight: 8.7 lbs

Controller: 36V/33A

Throttle: Aventon LH Handlebar Mounted

Sensors: Double-Sided Bottom Bracket Torque Sensor

Charger: 36V Output (42V/4A)

Charging Time (0% to 100%): 5 hours

Lighting

Front and Rear Lights: Integrated with Turn Signals

Brakes

Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor: 180mm, 6-bolt

Rear Brake Rotor: 203mm, 6-bolt

Drivetrain

Rear Derailleur: Shimano Altus RD-M310, 8-Speed

Shifter: Shimano 8-Speed Trigger (SL-M315-8R)

Chain: 7/8-Speed, 154L

Cassette: 12-32T / 8-Speed (Shimano CS HG200-8)

Chainring: 52 Tooth

Chainring BCD: 104mm

Crank: 3-Piece, 165mm Crank Arm

Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor

Pedals: 9/16" Composite Platform

Cockpit

Saddle: Aventon Saddle with Grab Handle by Selle Royal

Seatpost: Aventon Suspension Seatpost ( 30.9mm, 350mm Length, 50mm Travel)

Seatpost Clamp: 34.9mm

Handlebars: BMX Style Aluminum (31.8mm, 720mm)

Grips: Aventon Ergonomic Comfort Lock-On Grips

Headset: H886HW Peilin (28.6mm * 56mm * 56mm H19.5mm, 6pcs)

Included Accessories

Fenders: Included

Rear Rack: Included

Rear Rack Weight Limit: 143 lbs

The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
